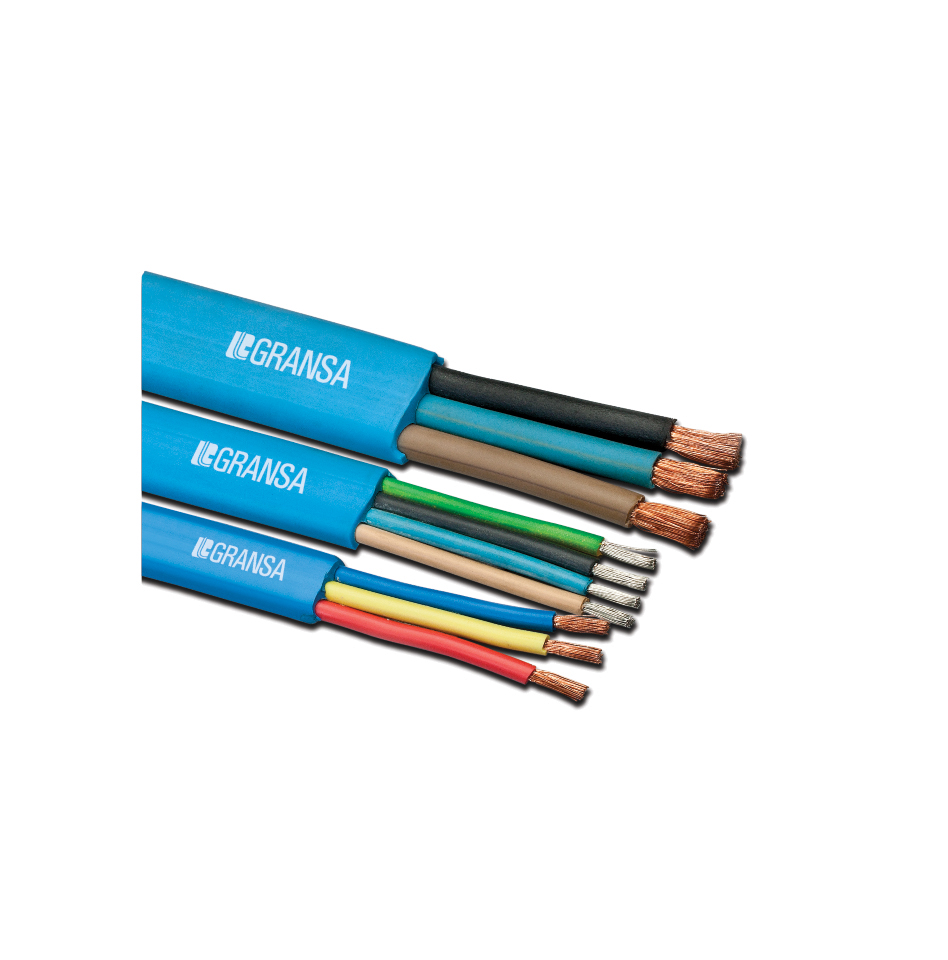

SUBMERSIBLE CABLES
AccessoriesSubmersible cables are produced in a well equipped, state of the art manufacturing facilities and using 99.97% pure bright electrolytic copper with low conductor resistance for high current carrying apacity. The insulation coating is done with superior grade Rubber PVC compounds with high insulation resistance and higher thermal stability. Outer sheath is made up of special grade water proof Rubber / PVC compounds, which gives resistant to moisture, abrasion, grease, oil and other environment effect.
Description
Specification
Std Cable Sizes in Sq.mm | 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70 ,95 ,120 & 150 (1100V) |
Armoured Cable sizes in Sq.mm | 1.5, 2.5, 4, 6, 10, 16, 25 & 35 (1100V) |
Temp Range | -100 C to + 700 C |
Insulated Material | PVC / RUBBER |
Sheath Material | PVC / RUBBER / HO7RNF |
Core | 3 & 4 Core |
