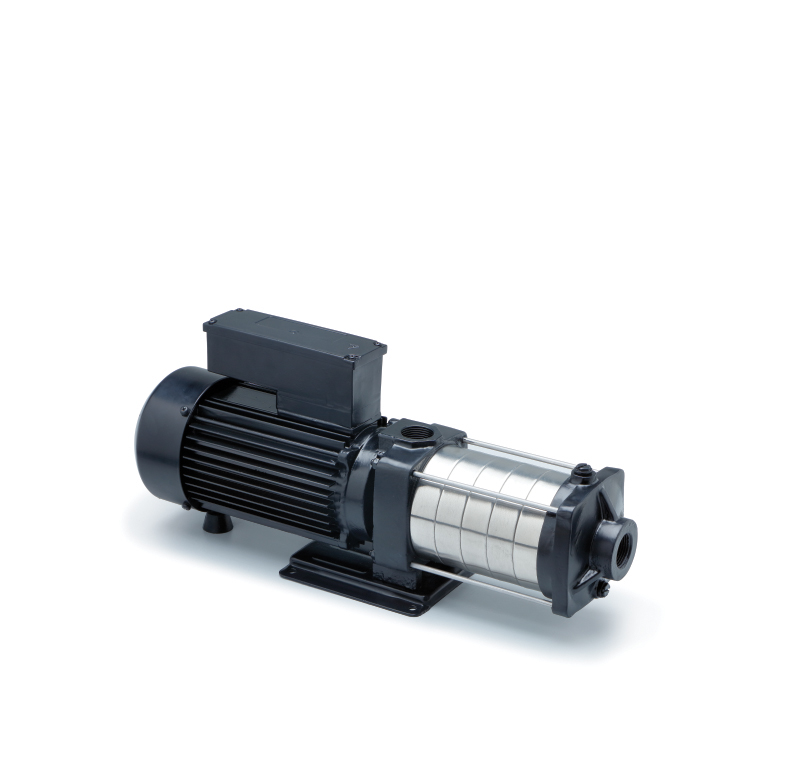

HORIZONTAL MULTISTAGE PUMPS – GHS SERIES

Pressure Boosting Pumps

Gransa “GHS series” horizontal multistage pumps are end suction and top discharge type supplied with radial flow impeller for higher head requirement. These pumps are centrifugal monoblock type available in both single phase and three phase supply. Most of the wetted parts in the pumps are made up of corrosive resistant stainless steel material for durability. All single phase pumps are thermally protected.

Tags:
Share on Facebook Share on twitter

Specification

Power Range(kW) 0.22 to 2.2kW
Speed 2900 rpm
Versions Single phase – 230V, 50Hz, A.C. Supply Three phase – 380-415V, 50Hz A.C. supply
Duty S1 Continuous
Degree of Protection IP 54
Class of Insulation B
Maximum Discharge Upto 14 m³/h
Maximum Head Upto 57m
Shaft seal Mechanical seal
Max.Liquid Temperature -10˚C to 70˚C
Max.Ambient Temperature 40˚C
Max.Opearting Pressure 5.7 bar
Flange Standard Manufacturer standard
Outlet size in mm DN25 to DN40

Features

  • High Efficiency
  • Stainless steel impeller and casings
  • ED coated cast Iron parts
  • Thermally protected single phase motors
  • Different materials of construction

Applications

  • Utility water supply in residences, villas and industries
  • Pressure boosting system
  • RO System
  • Industrial washing and cleaning system
  • Lanscaping and Gardens
