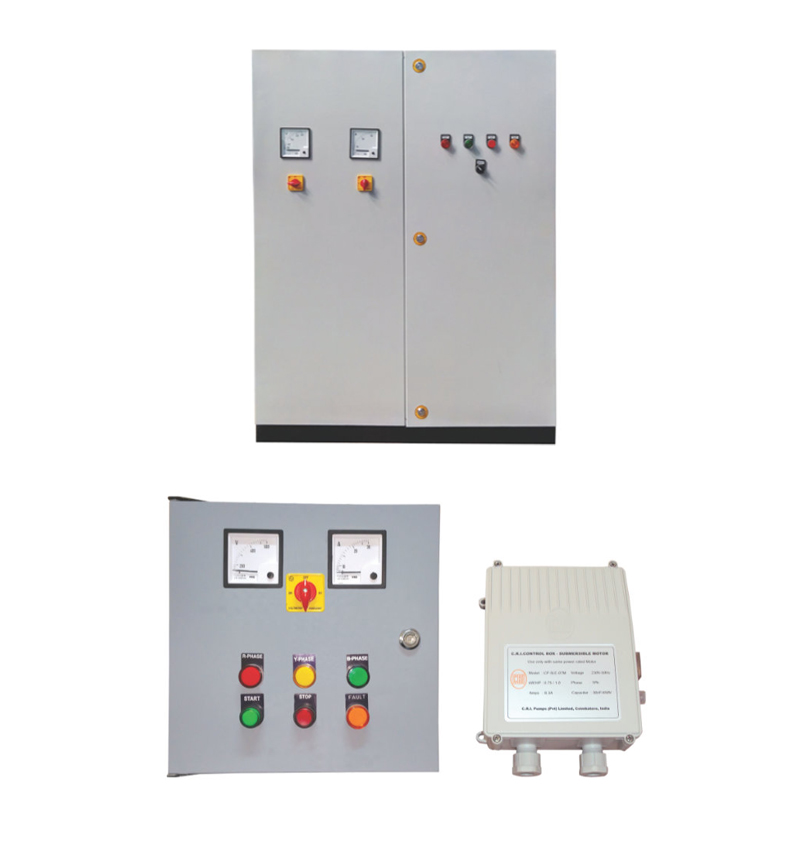

Control Box
AccessoriesControl panels are made of quality components and designed with various features to give ultimate protection to the prime movers such as Submersible motors, Waste water pumps and centrifugal pumps. Single Phase and Three -phase control panels are available which can be selected according to the control measures and features required.
Specification
| Specifications | Single Phase | Three Phase | ||||
| Control Box | DOL Starter | Star-Delta(SD) Starter | Impedance Starter | Soft Starter | Variable Frequency Drive(VFD) | |
| Power Range | 0.37 kW – 2.2 kW | 0.37 kW – 93 kW | 0.37 kW – 350 kW | 0.37 kW – 185 kW | 0.37 kW – 530 kW | 0.37 kW – 18.5 kW |
| Version | 220V, Single Phase,50Hz,A.C | 380V – 415V, Three Phase, 50Hz, A.C | 380V – 415V, Three Phase, 50Hz, A.C | 380V – 415V, Three Phase, 50Hz, A.C | 380V – 415V, Three Phase, 50Hz, A.C | 220V – 380V ,Three Phase, 50Hz, A.C |
| Type | Capacitor Start & Run (CSR) / Capacitor Start (CS) | – | – | – | – | – |
| Ingress Protection | IP 52 | Standard – IP 52 Optional – IP 55 & 65 | Standard – IP 52 Optional – IP 55 & 65 | Standard – IP 52 Optional – IP 55 | Standard – IP 52 Optional – IP 55 | IP 42 |
