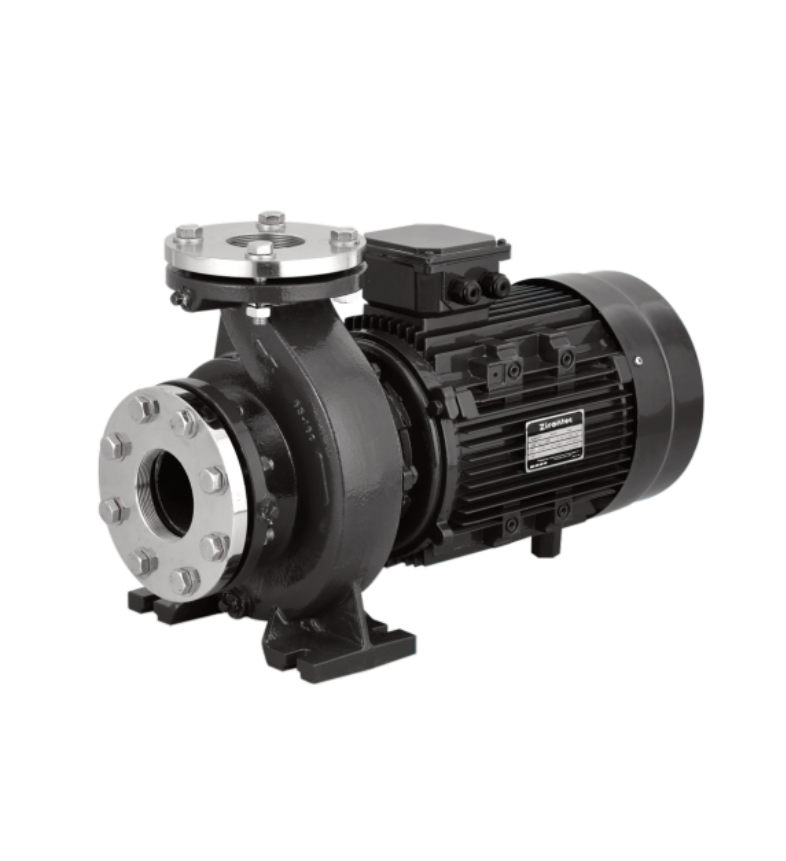

CENTRIFUGAL PUMPS – GCTT SERIES (DIN STANDARD)

Peripheral & Centrifugal Pumps

Horizontal single stage centrifugal monoblock pumps are rigid in construction and compact in design. Pump’s volute chamber and impeller are carefully designed to give the best hydraulic efficiency and suction lift characteristics. The back pull out design facilitates ease of maintenance. GCTT series (Din standard) are offered with fully stainless steel pump portion. The mounting and duties of these pumps are as per DIN 24255 standards. There is an option to choose IE1 or IE2 motors as per customer requirement.

Tags:
Share on Facebook Share on twitter

Specification

Power Range(kW) 2.2kW – 30 kW
Speed 2900
Versions Single phase – 230V, 50Hz, A.C. Three phase – 380-415V, 50Hz A.C. supply
Type of Duty S1 Continuous Duty
Degree of Protection IP 44 / IP 54
Class of Insulation F
Maximum Discharge Upto 210m³/h
Maximum Head Upto 141m
Max.Suction Lift Upto 7 m
Sealing Type Mechanical seal / Gland packing
Max.Liquid Temperature 33°C
Max.Ambient Temperature 40°C
Max.Opearting Pressure 10
Flange Standard DIN
Suction Flange Size in mm 50,65,80 & 100
Delivery Flange Size in mm 32,40,65 & 80

Features

  • High operating efficiency
  • Good suction lift
  • Dynamically balanced rotating parts
  • Stainless steel wetted parts in CTSS model

Applications

  • Agriculture
  • Commercial building
  • Cooling systems
  • Washing systems
  • Pressure Boosting systems
  • Utility water supply in industries
  • HVAC system
  • Fire fighting system
